POURED-IN-PLACE

SEAMLESS Rubber Surface

Perfect for Cart Paths, Bridges, Clubhouses & Pro Shops

Rubber Golf Path Surface

Golf Path Rubber Surfaces Systems (Poured-In-Place) is a seamless golf surface consisting of recycled rubber tire granular combined together with a highly sophisticated polyurethane binder. A specially engineered structural reinforcement geogrid within the surface system changing the dynamics of load distribution and maximizing strength and durability. Designed and installed by our company to meet the highest standards of quality and excellence.

Ontario Golf Rubber Surfacing Company

Golf Path is a manufacturer and installer of seamless rubber safety surfaces (poured–in–place). We have created a seamless golf safety surface second to none in the industry for over 35 years and have installed thousands of quality engineered projects.

Golf Path’s creative team has a reputation for our colourful, imaginative designs for all our rubber safety surfaces. We’re focused on our customer’s needs and ensure that every project is installed to a 100% satisfaction.

Golf Path’s reputation is all about our product quality, which is our number one focus. Durability is always the number one goal for Golf Path to provide to our clients. Golf Path never compromises and will always get the job done.

Rubber Surface Specifications

Quality Assurance:

Installer shall have at least five (5) years proven experience in the related field and approved by product manufacturer
Golf path will only be installed when temperatures exceed 5 degrees C. Installation during dry weather conditions is recommended.
Golf path will require a minimum of 24-48 hours for curing period.
Golf path installed by Synthetic Golf Surfaces, Oakville Ontario L6M-3K7Div. of Fortco Limited.

Quality Colors:

STANDARD COLORS: Terra Cotta, Forest Green, Black
FORTKOTE COLORS: Blue, Green, Red, Brown, Beige and Grey (U.V. Stable). Speckled colors at a 10% and 50% ratio available. Custom logo and borders available.
100% Recycled Rubber Products

GOLF PATH STEP-BY-STEP INSTALLATION:

1. Existing Stone Golf Pathway

2. Installation of reinforced geogrid and geotextile

3. Grading & Contouring of Golf Path Surface

4. Finishing

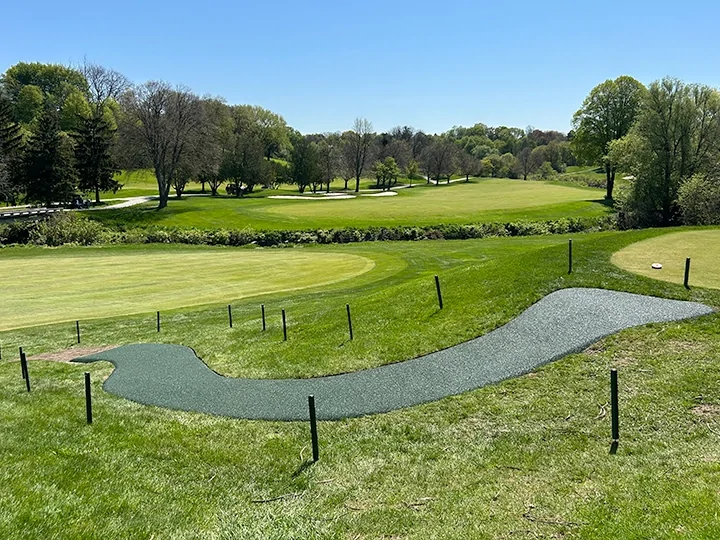

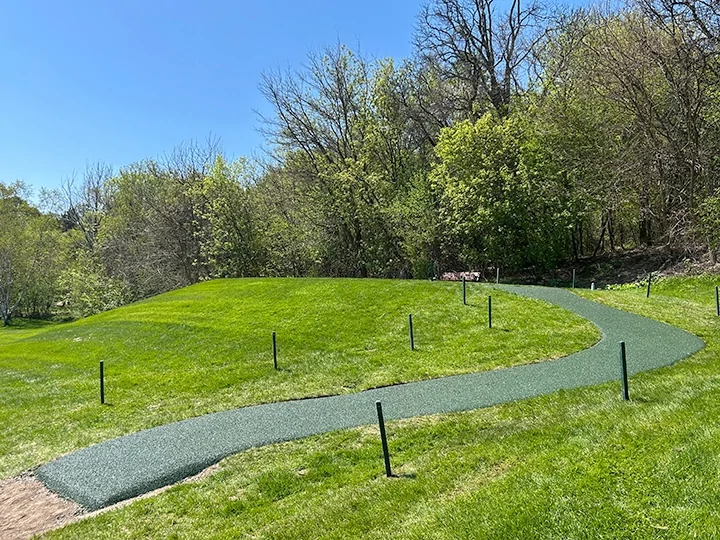

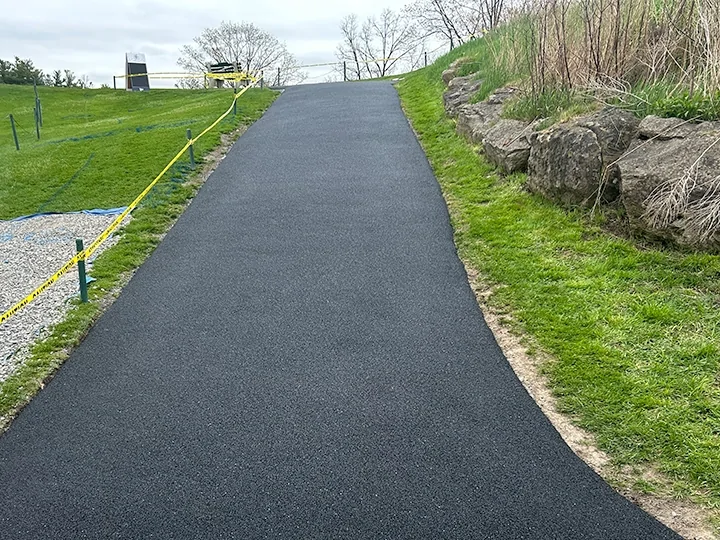

5. Golf Path Surface Complete

Rubber Surface Installation

Installation – Base Preparation:

Golf path can be installed on granular, asphalt or concrete surfaces.
When using a granular base, a minimum of 25mm to 100mm depth is required, compacted to a 95% proctor density. A water percolation rate of 60 litres/M2/hour. Should the rate be less, a French drain must be installed to provide adequate water flow. A geotextile between the granular base and surface is required. (Terrafix 200R)
Granular, asphalt or concrete surfaces require of no less than 2% to drain, acknowledging that Golf Path is a water permeable surface.
Structural re-enforcement geogrid is positioned and installed over sub-base, overlap all seams and fastened by an anchoring system.
Base can be sloped up to 60 degrees within the installation area.

Thickness of Poured-In-Place:

Thickness of the Golf Path surface will be 35mm to 50mm (1.5” to 2”)
Polyurethane binder shall be mixed throughout the entire thickness
Beveled edge is installed on both sides (2’, 4’, 6’ widths) of the installation running from the thickness of the surface down to the base. The outside line of the bevel must be clear and follow the designed edge of the installation.
